Pico second laser machine ZX-P2
classification： Products
keywords： Pico second laser machine ZX-P2
Principle

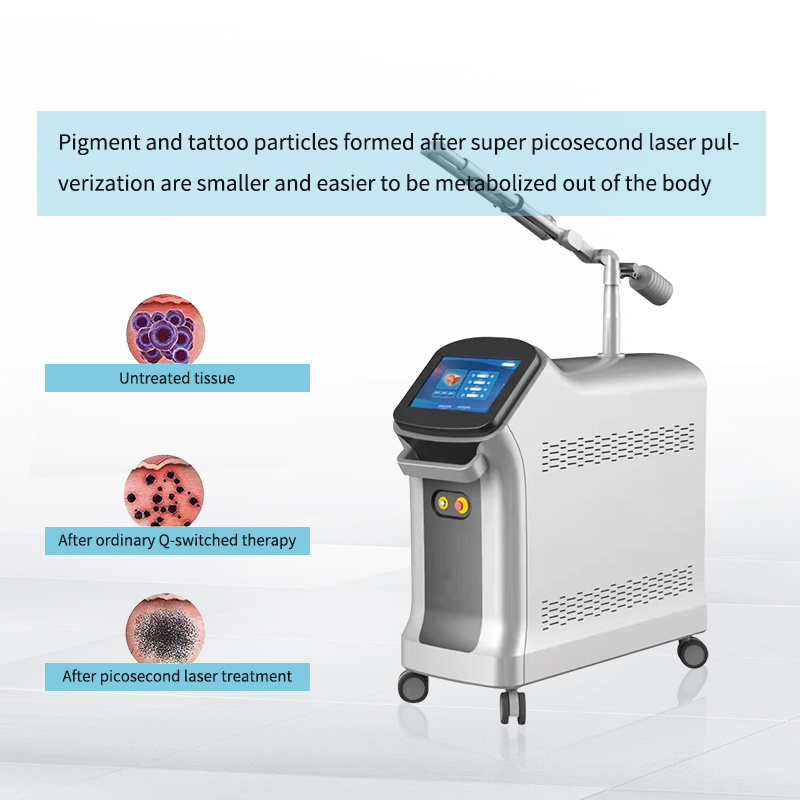

The PicoSecond Laser uses ultra-short pulses (one trillionth of a second in length) to hit the melanin with a great pressure, the melanin shatters into tiny dust-like particles. Because the particles are so small, they are more readily absorbed and eliminated by the body. This can mean better clearance of the melanin and less treatments overall.
PicoSecond Laser is a quick and easy non-surgical, non-invasive laser skin treatment for the body includingchest or decollete, face, hands, legs,and more.
|
Laser type |
EO Q-switch Nd:Picosecond Laser |
|||
|
Wavelength |
1064/532/755nm |
|||
|
Operate mode |
Q-switched mode & SPT mode |
|||
|
Beam profile |
Flat-top mode |
|||
|
Pulse width |
≤6-8ns (Q-switched mode) 300us (SPT mode) |
|||
|
Pulse energy |
|
Q-switched |
Q-switched |
SPT mode |
|
1064nm |
532nm |
1064nm long pulse |
||
|
Double pulse |
100mJ-1200mJ |
50mJ-480mJ |
100mJ-2000mJ |
|
|
Single pulse |
100mJ-800mJ |
50mJ-320mJ |
100mJ-1000mJ |
|
|
Energy calibration |
External & self-resoration |
|||
|
Spot size |
2-10mm |
|||
|
Reprtition rate |
Max.10Hz(1064nm,532nm,STP mode) |
|||
|
Optical delivery |
Articulated arm |
|||
|
Operate interface |
15”True color touch screen |
|||
|
Aiming beam |
Diode 655nm(Red),brightness adjustable |
|||
|
Cooling system |
Advanced Air & Water cooling system & semiconductor cooling |
|||
|
Power supply |
AC 110V or 230V,50/60Hz |
|||
